Trimble Connect AR

AUGMENTED REALITY FOR CONSTRUCTION

Resolve Problems Before They Occur.

Close the project loop for stakeholders on-site and in the office through augmented reality with Trimble Connect for use on iPad, iPhone, and Google AR Services-supported Android devices.

Trimble Connect AR

WITH TRIMBLE CONNECT AR – VISUALISE MODELS ON-SITE

  • Improve Efficiency

    Experience and interact with 3D data directly on-site to stay on schedule and avoid rework or additional costs.

  • Increase Productivity

    Promote real-time collaboration and transparency among stakeholders to quickly address and resolve onsite issues.

  • Put Vision into Context

    Visualise the design directly on your job site, enabling field workers to make better decisions by providing models with real-world context

Trimble Connect AR Visualise Models On-Site

ACCESSIBLE. ACCURATE. AUGMENTED REALITY

Drive value from your BIM model by getting it in the hands of more people onsite with Trimble Connect AR.

Simplify QA/QC Workflows with Trimble Connect AR

Simplify QA/QC Workflows

Simplify your Quality Assurance and Quality Control (QAQC) workflows, by identifying virtual to real clashes or coordination issues, verifying as-built conditions comply with the design, and allowing for consistent communication and collaboration.

View BIM Models in Augmented Reality

View BIM Models in Augmented Reality

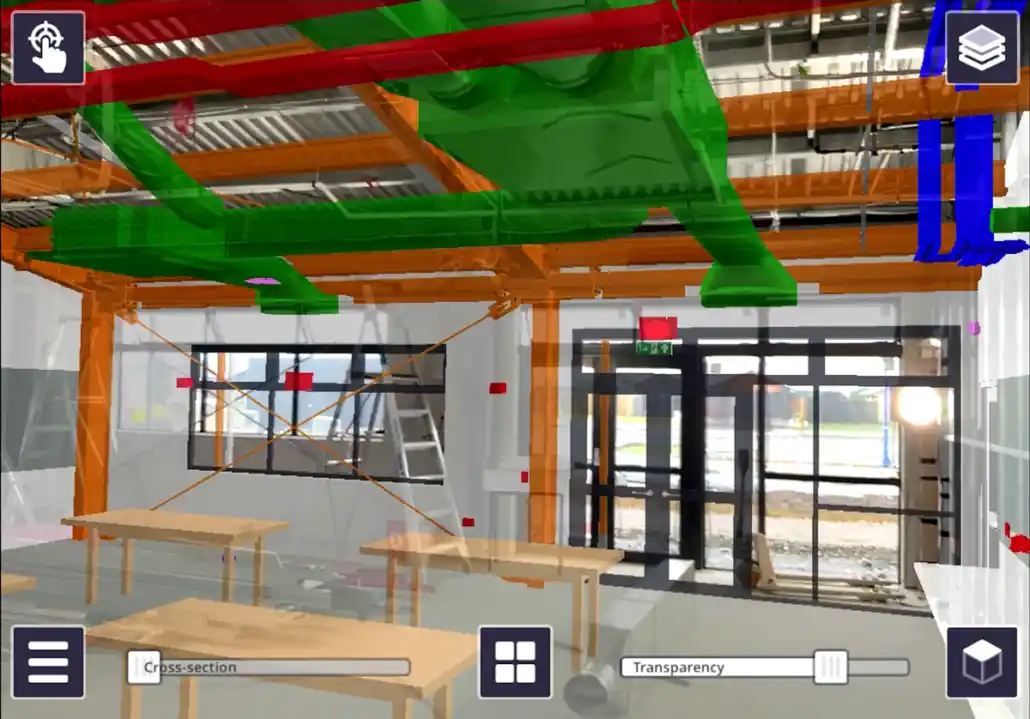

Place your 3D models in their actual location onsite. Complex situations become intuitive as you see the problem directly in the real-world context.

Accurately Position Models to Overlay the Real World

Accurately Position Models to Overlay the Real World

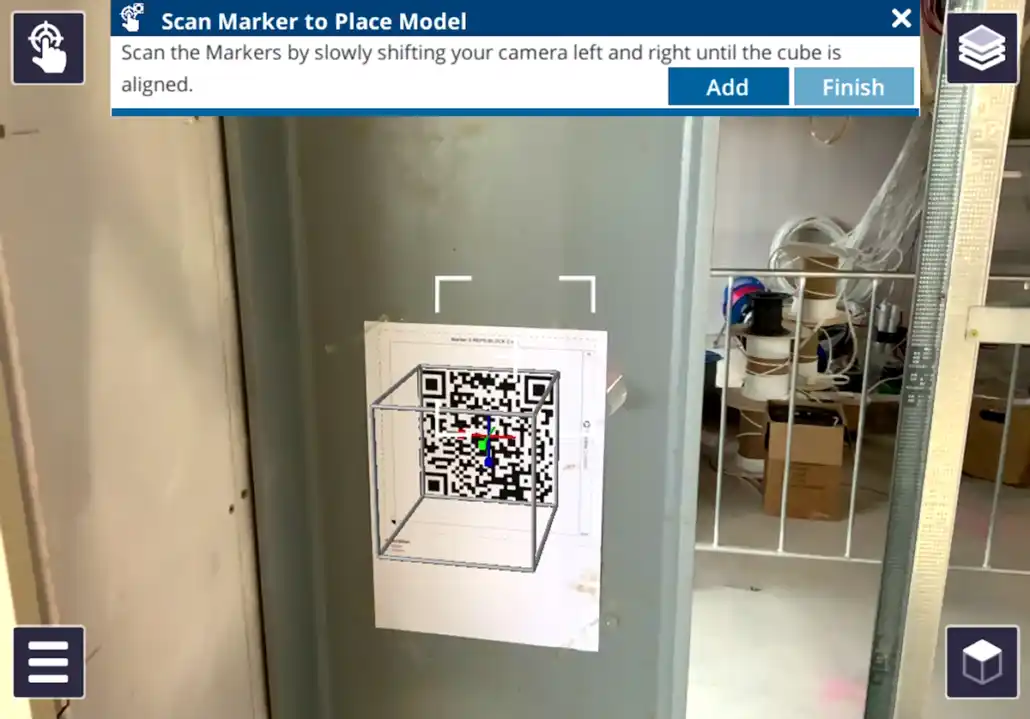

By establishing an accurately positioned network of QR Markers, busy construction professionals can quickly and easily position their models on their job site.

Capture and Share AR Photographs

Capture and Share AR Photographs via Trimble Connect

Photographs can be captured and shared with the project team via Trimble Connect. These can easily flow into subsequent RFI/punch/checklist workflows.

Integration with Trimble Connect and Trimble Field Tools

Integration with Trimble Connect and Trimble Field Tools

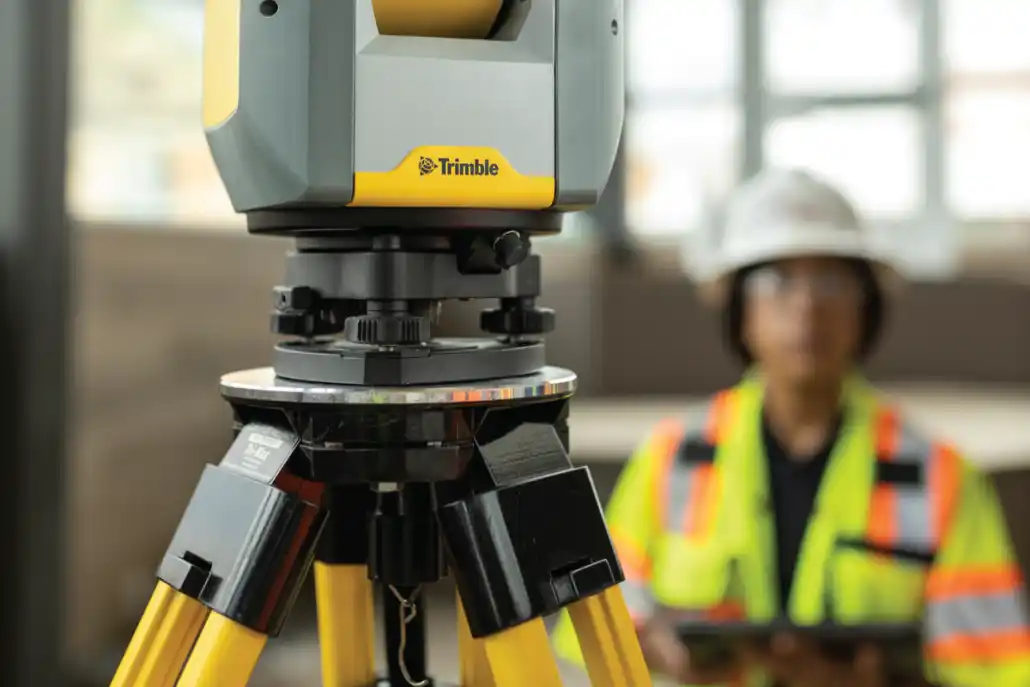

Our software provides simple web-based workflows to manage models and other data and Trimble Robotic Total Stations, used to establish a highly accurate QR Marker network.

Industry-leading 3D Performance with Trimble Connect AR

Industry-leading 3D Performance

Load large or complex models with minimal data preparation. Trimble Connect AR supports all common AEC file formats (not just a subset).

AUGMENTED REALITY FOR CONSTRUCTION

Enhance construction workflows by bringing 3D models and project data into the real world. Here are some of the key uses of Trimble Connect AR in the construction industry:

Visualisation of 3D Models On-Site

  • Model Overlay: Overlay 3D models directly onto the construction site, helping to visualise how designs fit into the actual environment. This real-time visualisation can be instrumental in ensuring accuracy and making adjustments before or during construction.
  • Design Verification: By comparing the digital model with the physical environment, construction teams can verify if the design aligns with the reality of the site. This helps identify discrepancies early, reducing errors and rework.

Enhanced Collaboration

  • Real-Time Communication: Teams can collaborate in real-time by viewing the same AR model on-site. This fosters better communication between designers, engineers, and construction workers, ensuring everyone is on the same page.
  • Issue Identification and Resolution: Problems can be identified and resolved quickly as everyone involved can see the issues in the context of the actual environment. AR also makes it easier to convey complex information during meetings or discussions.

Improved Construction Accuracy

  • Precision Placement: AR assists in ensuring that components are placed correctly in the construction process. This can be especially useful for complex structures, where precise placement is critical for structural integrity.
  • Layout and Installation: Workers can use AR to guide the installation of elements like pipes, walls, and other fixtures, reducing the need for rework and ensuring that the construction matches the design specifications.

Quality Control and Inspection

  • Comparison with As-Built Conditions: Enable teams to compare the construction progress with the original design, helping to ensure quality standards are met. Inspections can be more thorough as AR highlights any deviations from the plan.
  • Documentation: AR can be used to document the construction process, capturing images or videos that show the model in relation to the actual build. This can be valuable for later reviews, claims, or reporting.

Safety and Training

  • Hazard Identification: By visualising the final design within the construction environment, workers can better understand potential hazards and adjust their approach to improve safety on-site.
  • Training Tool: Allow workers to interact with 3D models in the real world. This hands-on experience can help them understand the project better and be prepared for actual construction tasks.

Streamlining Workflows

  • Integration with BIM (Building Information Modeling): Integrates seamlessly with BIM models, allowing for easy access to project data and updates. This helps streamline workflows and ensures that the most current information is always available on-site.
  • Project Monitoring: By using AR to visualise the project’s progress, managers can better monitor timelines, budgets, and overall project health, making more informed decisions.

Client Engagement and Presentations

  • Interactive Client Walkthroughs: Clients can experience the design in AR, allowing them to walk through the project before it’s built. This interactive experience can enhance client satisfaction by giving them a clearer understanding of the final product.
  • Stakeholder Presentations: AR can be used in presentations to stakeholders, making complex designs more accessible and easier to understand, which can aid in securing approvals and investments.

Trimble Connect AR bridges the gap between digital designs and physical construction, enhancing accuracy, collaboration, and efficiency throughout the construction process.

TRIMBLE CONNECT AR FREQUENTLY ASKED QUESTIONS

Trimble Connect AR is an augmented reality application designed for the construction industry, allowing users to view, interact with, and position 3D BIM models in real-world environments on-site.

Trimble Connect AR supports devices running iOS (iPad and iPhone) and Android devices that support Google AR Services.

The app simplifies QA/QC workflows by enabling users to identify clashes, verify as-built conditions against designs, and ensure consistent communication and collaboration on-site.

Accurate positioning is achieved through the use of QR markers that establish a reference network, allowing models to be precisely overlaid onto the real-world site.

Yes, AR photographs and visualisations can be captured within the app and shared through Trimble Connect, facilitating better communication and documentation.

The app supports all common AEC file formats, ensuring compatibility with a wide range of BIM models.

Trimble Connect AR
