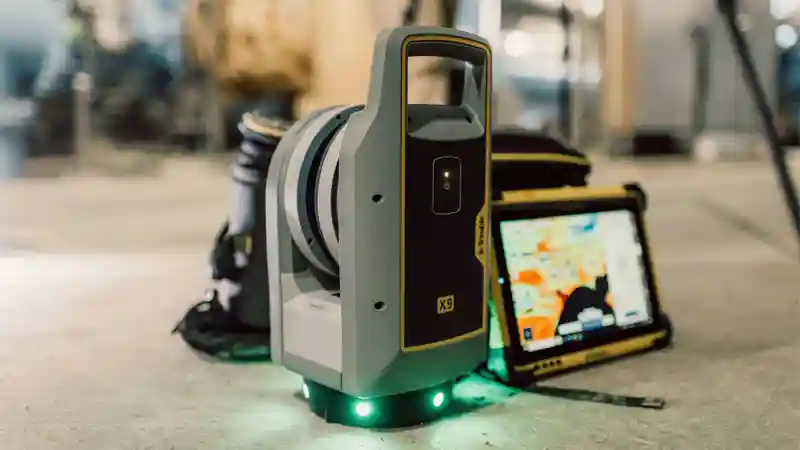

Trimble X9

THE POWER TO DO MORE, ON YOUR TERMS

Expand your BIM workflows by precisely capturing accurate as-built conditions.

The Trimble X9 3D laser scanning platform uses advanced Trimble technology to provide the range, accuracy, speed, and sensitivity required for enhanced performance.

With flexible licensing options, you can select the scanning capabilities that best suit your project needs

Trimble X9

Get ahead of the game with Trimble

Versatile, advanced scanning and imaging you can depend on.

  • A solution that best fits your needs

    Customise your X9 with flexible configurations. Choose the model that fits your needs, from Core to Premium, ensuring the perfect option for every project.

  • Proven innovations and simple workflows

    Automatic calibration, self-leveling and Trimble Perspective software ensure scanner performance, easy setup and comprehensive in-field registration workflows.

  • Our most versatile laser scanner

    Offers intermediate range, high accuracy and short scan times with higher sensitivity for peak performance.

SPECIFICATIONS

Trimble X9 Core

Scan speed

Up to 500 kHz

Scan range

0.6 m–80 m

Scan times

< 2 min to 7 min

Range Noise
< 1.5 mm @ 30 m on 80% albedo

3D Point Accuracy

3.0 mm @20 m

Imaging

3 coaxial, calibrated 10MP cameras

Ingress Protection

IP55

Dual Axis Compensator

Accuracy <3", Range ±10°

Interface

WLAN via Trimble Perspective Windows tablet or Perspective Mobile from Apple or Android device

Laser Class

Laser class 1, eye safe in accordance with IEC EN60825-1

Trimble X9 Premium

Scan speed

Up to 1000 kHz

Scan range

0.6 m–150 m

Scan times

< 1 min to 6 min

Range Noise
< 1.5 mm @ 30 m on 80% albedo

3D Point Accuracy

3.0 mm @20 m

Imaging

3 coaxial, calibrated 10MP cameras

Ingress Protection

IP55

Dual Axis Compensator

Accuracy <3", Range ±10°

Interface

WLAN via Trimble Perspective Windows tablet or Perspective Mobile from Apple or Android device

Laser Class

Laser class 1, eye safe in accordance with IEC EN60825-1

Bring 3D Laser Scanning Into Your Own Hands

INDUSTRIES AND APPLICATIONS

The future of your work

Trimble solutions facilitate high-quality, productive workflows and data exchange, driving value for a global, diverse user base.

Industries

Discover how Trimble can help you solve your industry’s most complex challenges and uncover opportunities to work smarter.

Applications

Trimble transforms data into real-world intelligence using the most progressive, reliable and accurate precision technology to meet needs of varied applications.
